Parent Layer: Stormwater Misc

Name: Regulated Sub Lines

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: These drains are considered Hamilton County Regulated Drain. A Regulated Drain is drain, either open channel or closed tile/sewer, subject to the provisions of the Indiana Drainage code, I.C.-36-9-27.

Service Item Id: f67b9cf387bb4616a4a2481d612e3fd1

Copyright Text: Hamilton County Surveyor's Office

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 7500.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 166759.51272493228
YMin: 1703813.590000011
XMax: 273187.1939336769
YMax: 1781782.1600000039
Spatial Reference: 2244  (2965)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [126, 163, 62, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• MAPID ( type: esriFieldTypeInteger, alias: MAPID )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 50 )
• DRAIN_NUM ( type: esriFieldTypeString, alias: DRAIN_NUM, length: 5 )
• ARM ( type: esriFieldTypeString, alias: ARM, length: 50 )
• DRAIN_TYPE ( type: esriFieldTypeString, alias: DRAIN_TYPE, length: 15 , Coded Values: [OPEN: OPEN DRAIN] , [CLOSED: CLOSED DRAIN] , [MUNI: MUNICIPAL DRAIN] , ...1 more... )
• INST_DATE ( type: esriFieldTypeString, alias: INST_DATE, length: 8 )
• DRAIN_LENGTH ( type: esriFieldTypeDouble, alias: DRAIN_LENGTH )
• DRAIN_DIA_OR_WIDTH ( type: esriFieldTypeDouble, alias: DRAIN_DIA_OR_WIDTH )
• DRAIN_HEIGHT ( type: esriFieldTypeDouble, alias: DRAIN_HEIGHT )
• MATERIAL ( type: esriFieldTypeString, alias: MATERIAL, length: 40 )
• SHAPE_1 ( type: esriFieldTypeString, alias: SHAPE_1, length: 10 )
• NUM_OF_ROWS ( type: esriFieldTypeInteger, alias: NUM_OF_ROWS )
• UP_INVERT ( type: esriFieldTypeDouble, alias: UP_INVERT )
• DOWN_INVERT ( type: esriFieldTypeDouble, alias: DOWN_INVERT )
• BEG_STA ( type: esriFieldTypeString, alias: BEG_STA, length: 6 )
• END_STA ( type: esriFieldTypeString, alias: END_STA, length: 6 )
• GRADE ( type: esriFieldTypeDouble, alias: GRADE )
• DRAIN_CLASSIFICATION ( type: esriFieldTypeString, alias: DRAIN_CLASSIFICATION, length: 6 , Coded Values: [URBAN: URBAN] , [RURAL: RURAL] , [MUNI: MUNICIPAL] )
• PRI_WTRSHD ( type: esriFieldTypeString, alias: PRI_WTRSHD, length: 75 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

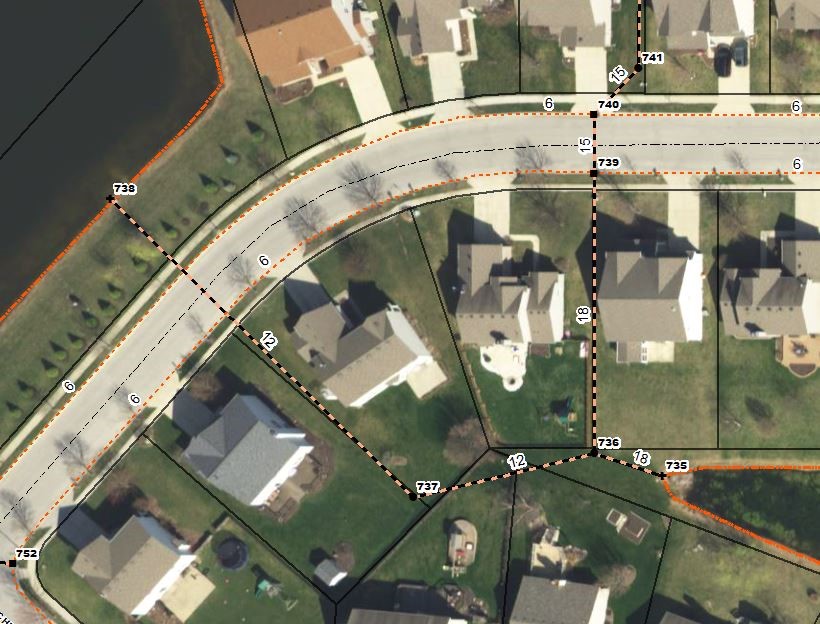

  Iteminfo   Thumbnail   Metadata
