Parent Layer: Stormwater Misc

Name: Regulated Sub Structures

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: These drain structures are consider Hamilton County Regulated Drain structures. A Regulated Drain structure is subject to the provisions of the Indiana Drainage code, I.C.-36-9-27.

Service Item Id: f67b9cf387bb4616a4a2481d612e3fd1

Copyright Text: Hamilton County Surveyor's Office

Default Visibility: false

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 7500.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.81198E7
YMin: -4.56154E7
XMax: 273173.3556747362
YMax: 1795940.340266116
Spatial Reference: 2244  (2965)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [137, 90, 68, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• MAPID ( type: esriFieldTypeInteger, alias: MAPID )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 50 )
• DRAIN_NUM ( type: esriFieldTypeString, alias: DRAIN_NUM, length: 5 )
• ARM ( type: esriFieldTypeString, alias: ARM, length: 50 )
• STRUCT_ID ( type: esriFieldTypeString, alias: STRUCT_ID, length: 10 )
• STRUCT_TYPE ( type: esriFieldTypeString, alias: STRUCT_TYPE, length: 25 )
• INST_DATE ( type: esriFieldTypeString, alias: INST_DATE, length: 8 )
• STRUCT_DIA_OR_WIDTH ( type: esriFieldTypeDouble, alias: STRUCT_DIA_OR_WIDTH )
• STRUCT_HEIGHT ( type: esriFieldTypeDouble, alias: STRUCT_HEIGHT )
• STR_LENGTH ( type: esriFieldTypeDouble, alias: STR_LENGTH )
• MATERIAL ( type: esriFieldTypeString, alias: MATERIAL, length: 15 )
• SHAPE_1 ( type: esriFieldTypeString, alias: SHAPE_1, length: 10 )
• RIM_ELEV ( type: esriFieldTypeDouble, alias: RIM_ELEV )
• INVERT ( type: esriFieldTypeDouble, alias: INVERT )
• ENGINEERING_FIRM ( type: esriFieldTypeString, alias: ENGINEERING_FIRM, length: 50 )
• ASBUILT_ID ( type: esriFieldTypeString, alias: ASBUILT_ID, length: 60 )
• GPS_XCOORD ( type: esriFieldTypeDouble, alias: GPS_XCOORD )
• GPS_YCOORD ( type: esriFieldTypeDouble, alias: GPS_YCOORD )
• GPS_ZCOORD ( type: esriFieldTypeDouble, alias: GPS_ZCOORD )
• BMP ( type: esriFieldTypeString, alias: BMP, length: 30 )
• PRI_WTRSHD ( type: esriFieldTypeString, alias: PRI_WTRSHD, length: 75 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• STRUCTURE_CLASS ( type: esriFieldTypeString, alias: STRUCTURE_CLASS, length: 50 , Coded Values: [OTHER STRUCTURE: OTHER STRUCTURE] , [BREATHER: BREATHER] , [CATCH BASIN: CATCH BASIN] , ...9 more... )
• BMP_INSP_YR ( type: esriFieldTypeString, alias: BMP_INSP_YR, length: 15 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

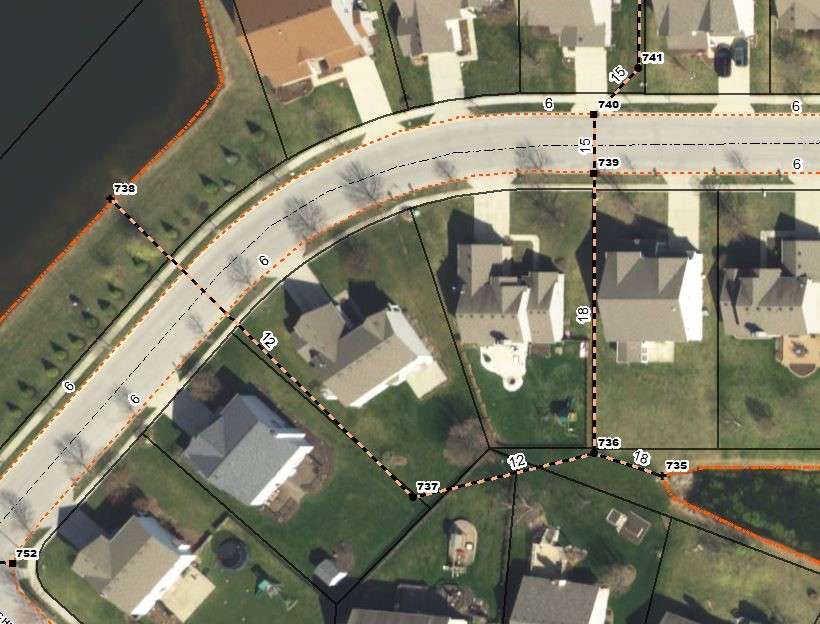

  Iteminfo   Thumbnail   Metadata
